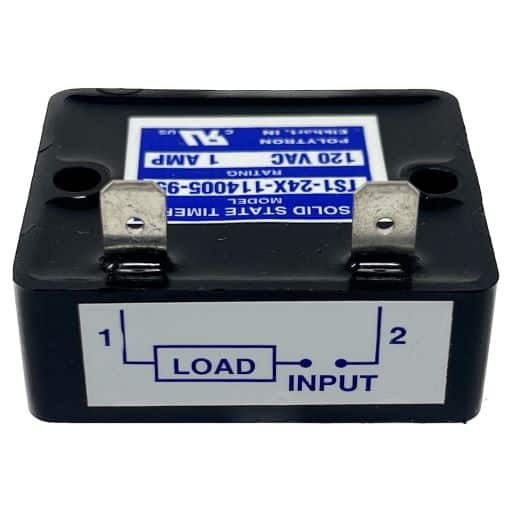

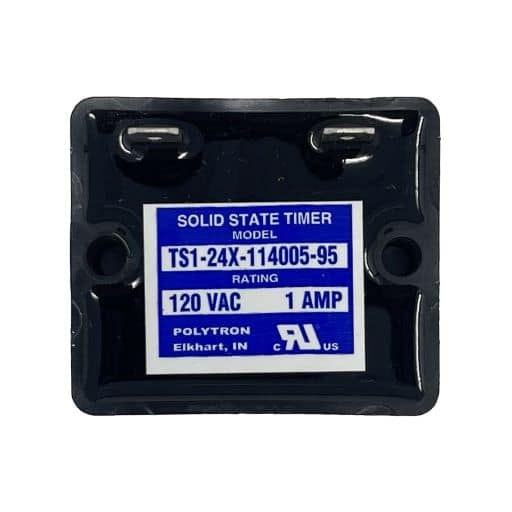

TS1-24X-114005-95 – Polytron – Time Delay Relay 0.5 Sec. 115 VAC
$69.99
Part Number: TS1-24X-114005-95
Manufacturer: Polytron
Description: Time Delay Relay, 0.5 Sec. 115 VAC
15 in stock
Description
Time Delay Relay 0.5 Sec. 115 VAC
Terminations:
Standard 1/4″ Male
Fast On Terminals
Specifications:
Fixed Time Tolerance @ Rated Voltage – ±10%
Repeat Accuracy (Fixed Conditions) – ±2%
Reset Time – 75 mSEC
Voltage Tolerance – ±15%
Frequency – AC or DC
Load Rating; Steady State Maximum – 1A
Load Rating; Inrush Maximum – 10A
Voltage Drop – 2.5V Typical @ 1A
Power Consumption (During Timing) – 3 Watt Max.
Leakage Current – 5mA Max.
Operating Temperature – -20°C to 60°C
Storage Temperature – -30°C to 85°C
Construction – 100% Encapsulated Against Humidity, Shock & Vibration
Weight – 6 Ounces
Life In Number Of Operations – 100,000,000
Approvals: UL Recognized in USA & Canada
Additional information
MPN | TS1-24X-114005-95 |
---|---|
Manufacturer | Polytron |
