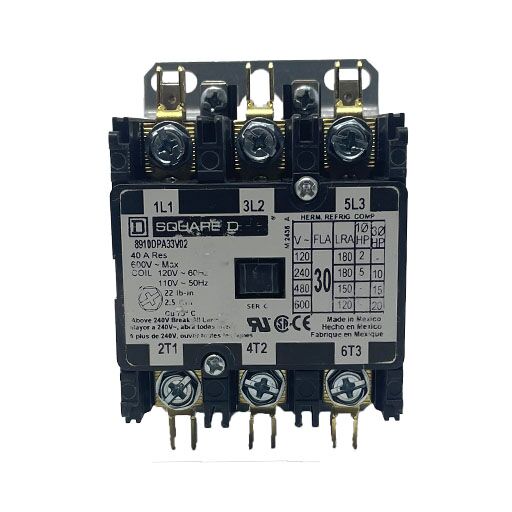

8910DPA33V02 Front view with manufacturer's specifications in English

8910DPA33V02 – Square-D – Contactor 30 Amp, 3 Pole, 120V Coil

Name: 8910DPA33V02 - Square-D - Contactor 30 Amp, 3 Pole, 120V Coil $64.99
SKU: CRC00032
Price: 64.99 USD
Availability: InStock

$64.99

Part Number: 8910DPA33V02

Manufacturer: Square-D

Description: Contactor Square-D, 30 Amp, 3 Pole, 120V Coil

More Contactors

2 in stock

Description
Additional information

Description

Contactor Square-D, 30 Amp, 3 Pole, 120V Coil

Poles: 3 Pole

Phase: 3 Phase

Height: 2.31 in (58.67 mm)

Width: 2.37 in (60.20 mm)

Depth: 2.9 in (73.66 mm)

Weight: 0.99 lb (US) (0.45kg)

Product Certifications: CSA, UL Listed.

Open Style

Manufacturer Specifications Sheet

Additional information

Brand	Square-D
MPN	8910DPA33V02
