B075-3556-8 – Micron – Transformer 230/460v Primary, 115v Secondary, 75VA

Description

An epoxy-encapsulated ImperviTRAN style unit designed to step down higher line voltages to safer control voltages and features a rugged design built to withstand harsh factory floors.

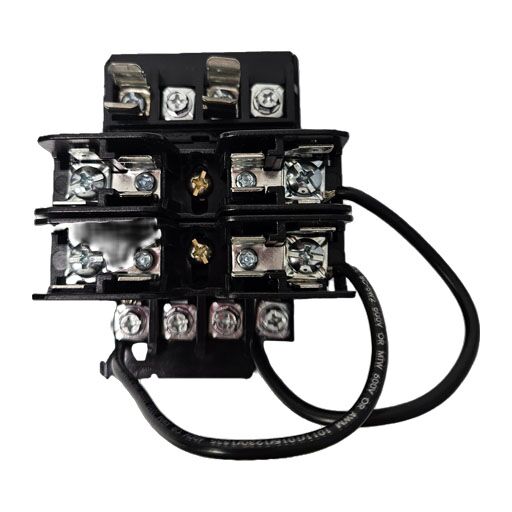

Features pre-installed mounting holes and an accessory platform for optional primary and secondary fuse clips.

Molded in Terminals: Includes built-in terminal barriers and #10-32 phil-slot screws for secure wiring.

Primary Voltage: 230/460v

Secondary Voltage: 115v

Power Rating: 75VA

Length: 3.75 in (95.25 mm)

Width:3 in (76.2 mm)

Height: 4 in (101.6 mm)

Weight: 3.75 lb (1.7 kg)

Alternate part #:  22946771
