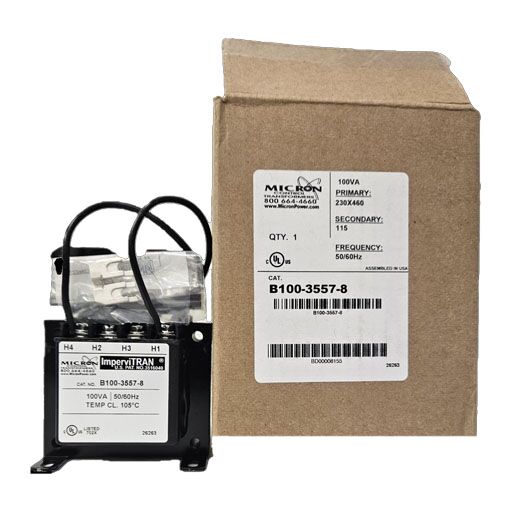

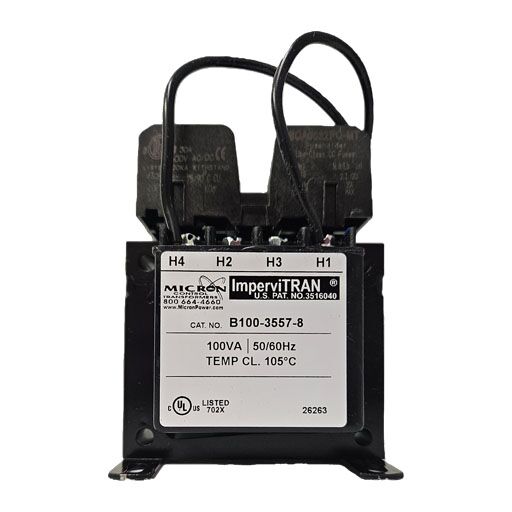

B100-3557-8 – Micron – Transformer 230/460v Primary, 115v Secondary, 100VA

Description

An epoxy-encapsulated ImperviTRAN style unit designed to step down higher line voltages to safer control voltages and features a rugged design built to withstand harsh factory floors.

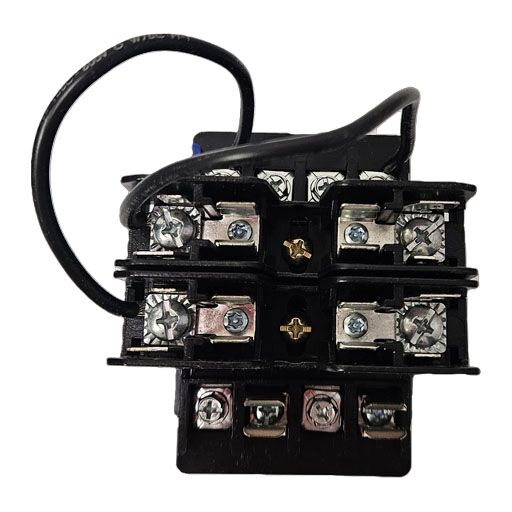

Features pre-installed mounting holes and an accessory platform for optional primary and secondary fuse clips.

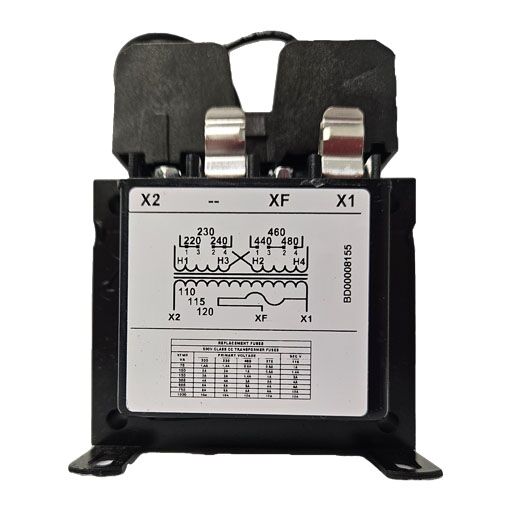

Molded in Terminals: Includes built-in terminal barriers and #10-32 phil-slot screws for secure wiring.

Primary Voltage: 230/460v

Secondary Voltage: 115v

Power Rating: 100VA

Length: 3.25 in (82.6 mm)

Width: 3.5 in (88.9 mm)

Height: 4.5 in (114.3 mm)

Weight: 4.25 lb (1.93 kg)

Alternate part #22946711
