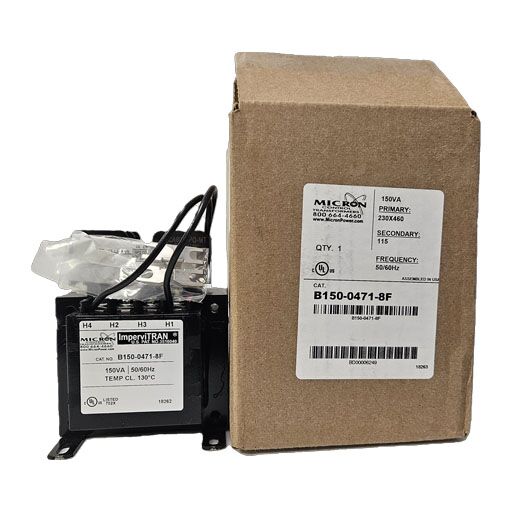

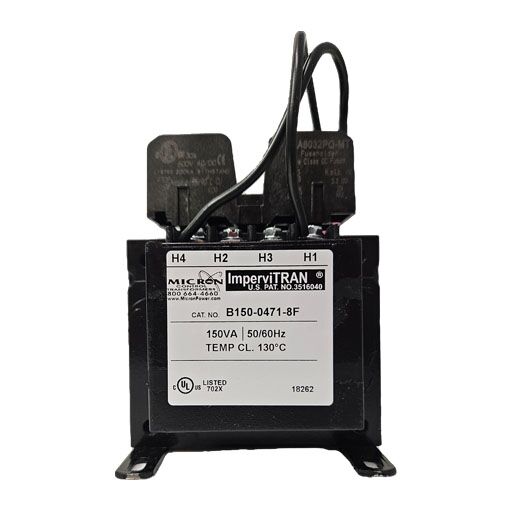

B150-0471-8F – Micron – Transformer 230/460v Primary, 115v Secondary, 150VA

Description

An epoxy-encapsulated ImperviTRAN style unit designed to step down higher line voltages to safer control voltages and features a rugged design built to withstand harsh factory floors.

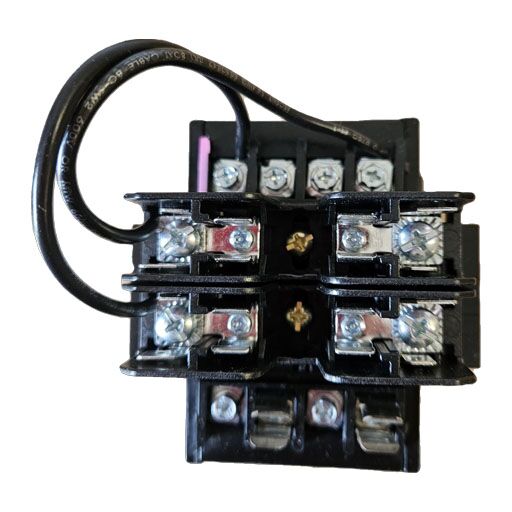

Features pre-installed mounting holes and an accessory platform for optional primary and secondary fuse clips.

Molded in Terminals: Includes built-in terminal barriers and #10-32 phil-slot screws for secure wiring.

Primary Voltage: 230/460v

Secondary Voltage: 115

Power Rating: 150VA

Length: 4 in (101.6 mm)

Width: 3.5 in (88.9 mm)

Height: 4.5 in (114.3 mm)

Weight: 5.6 lb (2.54 kg)

Alternate part #:  22946721
