B300-0472-8F – Micron – Transformer 230/460v Primary, 115v Secondary, 300VA

Description

An epoxy-encapsulated ImperviTRAN style unit designed to step down higher line voltages to safer control voltages and features a rugged design built to withstand harsh factory floors.

Features pre-installed mounting holes and an accessory platform for optional primary and secondary fuse clips.

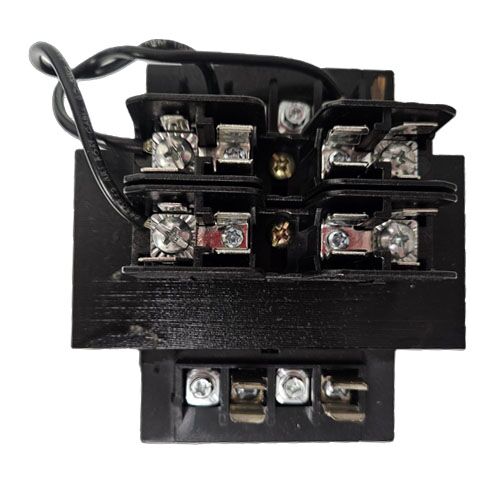

Molded in Terminals: Includes built-in terminal barriers and #10-32 phil-slot screws for secure wiring.

Primary Voltage: 230/460v

Secondary Voltage: 115v

Power Rating: 300VA

Length: 4.75 in (120.7 mm)

Width: 4.5 in (114.3 mm)

Height: 5.25 in (133.4 mm)

Weight: 10.85 lb (US) (4.93 kg)

Alternate part #:  22946731
