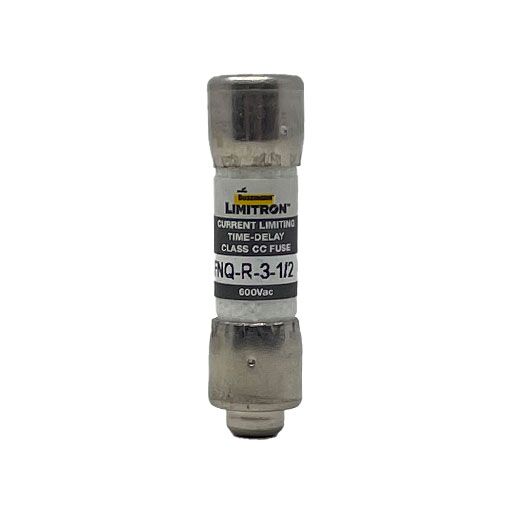

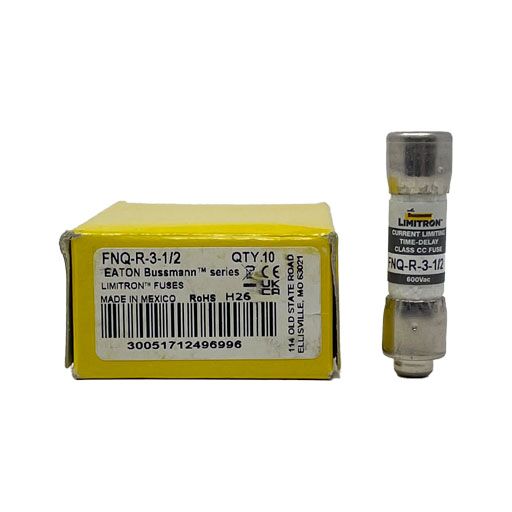

FNQ-R-3-1/2 – Bussmann – Fuse Class ‘CC’ 3-1/2 Amp 600 Volt

Description

Fuse Class ‘CC’ 3-1/2 Amp 600 Volt

Bussmann™ series Ultimate protection Low-Peak Class CC current-limiting, time-delay fuses. Time delay – 12 seconds (minimum) at 200% of rated current.

Specifications:

Ratings

• Volts

• 600 Vac

• 300 Vdc (15 & 20A)

• Amps 1/4-30A

• IR 200 kA Vac RMS Sym.

• 20 kA Vdc (15 & 20A)

Agency information

• UL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273

• CSA Certified, Class CC CSA, Class 1422-01, File 53787–HRC-MISC

• CE

• RoHS compliant
