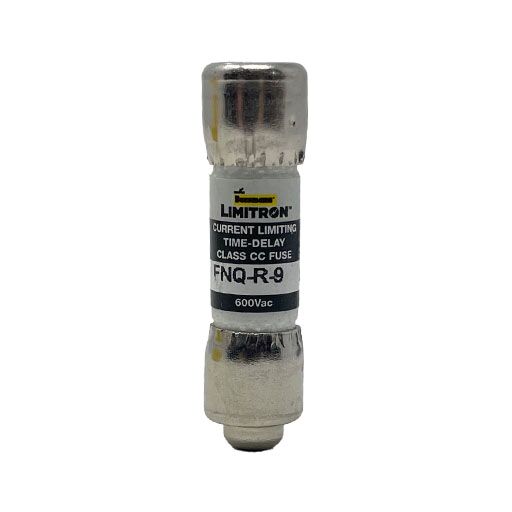

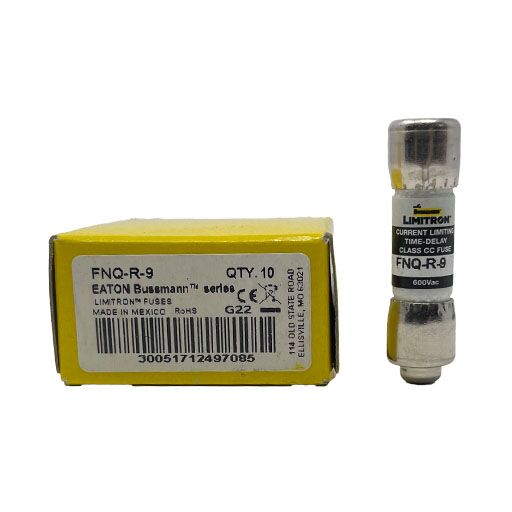

FNQ-R-9 – Bussmann – Fuse Class ‘CC’ 9 Amp 600 Volt

Description

Fuse Class ‘CC’ 9 Amp 600 Volt

Bussmann™ series Ultimate protection Low-Peak Class CC current-limiting, time-delay fuses. Time delay – 12 seconds (minimum) at 200% of rated current.

Specifications:

Ratings

• Volts

• 600 Vac

• 300 Vdc (1/2 to 2-8/10 A, 20-30 A)

• 150 Vdc (3-15 A)

• Amps 1/2-30 A

• IR 200 kA Vac RMS Sym.

• 20 kA Vdc

Agency information

• UL® Listed Class CC, Std. 248-4, Guide JDDZ, File E4273

• CSA® Certified; Class 1422-02, File 53787

• CE

• RoHS compliant

Manufacturer Specifications Sheet
