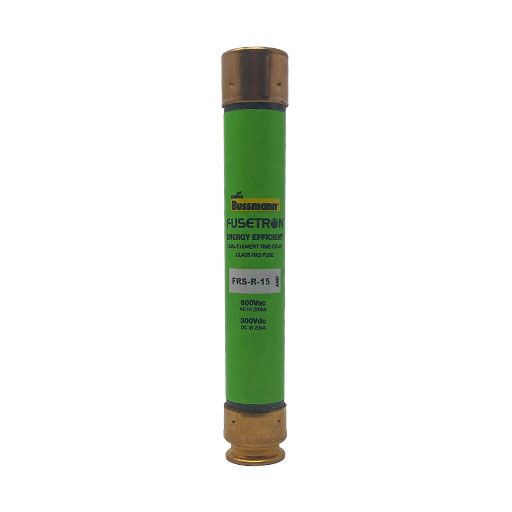

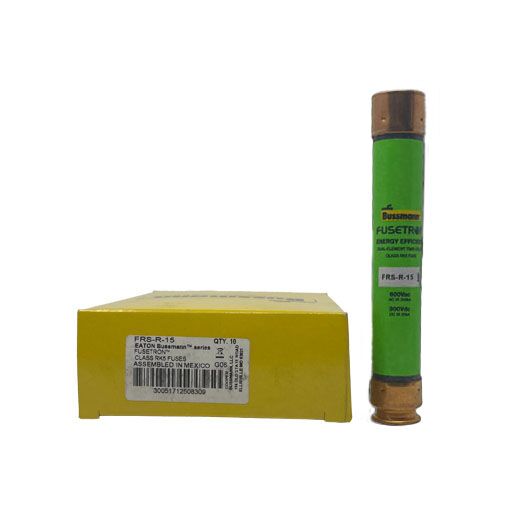

FRS-R-15 – Bussmann – Fuse Class ‘RK5’ 15 Amp 600 Volt

Fuse Class ‘RK5’ 15 Amp 600 Volt

Advanced protection, energy efficient Class RK5 dual-element, current-limiting, time-delay fuses with optional open fuse indication on select ratings. Time-delay — 10 second (minimum) at 500% of rated current.

Specifications:

Ratings

• Volts

• 600 Vac, 300 Vdc (15 A)

• Amps — 15 A

• Interrupting rating

• 200 kA Vac RMS Sym

• 20 kA Vdc

* Indicating versions not Vdc rated.

Agency Information

• UL® Listed, Std. 248-12, Class RK5, Guide JDDZ, File E4273

• CSA® Certified, C22.2 No. 248.12, Class 1422-02, File 53787

• CE
