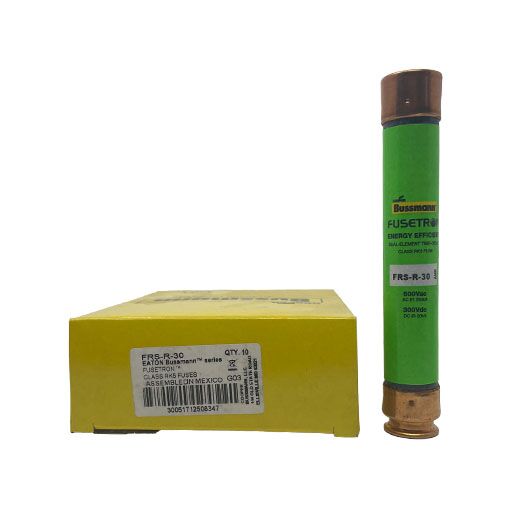

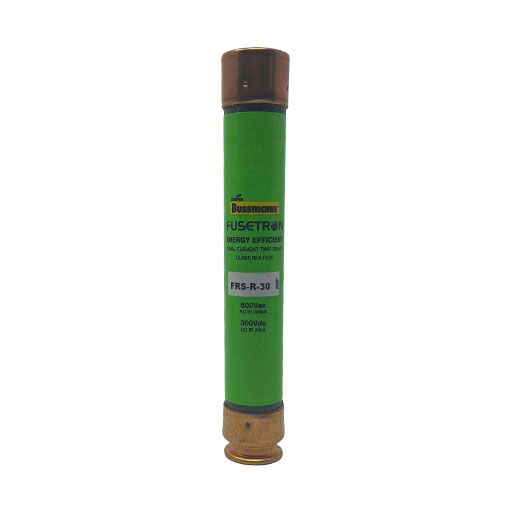

FRS-R-30 – Bussmann – Fuse Class ‘RK5’ 30 Amp 600 Volt

$10.25

Part Number:        FRS-R-30

Manufacturer:      Bussmann

Description:           Fuse Class ‘RK5’

                                  30 Amp 600 Volt

                                  Sold individually



Manufacturer Specifications Sheet

More FRS-R Fuses

More Fuses & Fuse Bases

289 in stock

Fuse Class ‘RK5’ 30 Amp 600 Volt

Advanced protection, energy efficient Class RK5 dual-element, current-limiting, time-delay fuses with optional open fuse indication on select ratings. Time-delay — 10 second (minimum) at 500% of rated current.

Specifications:

Ratings

• Volts

• 600 Vac, 300 Vdc (30 A)

• Amps — 30 A

• Interrupting rating

• 200 kA Vac RMS Sym

• 20 kA Vdc

* Indicating versions not Vdc rated.

Agency Information

• UL® Listed, Std. 248-12, Class RK5, Guide JDDZ, File E4273

• CSA® Certified, C22.2 No. 248.12, Class 1422-02, File 53787

• CE

Brand

Bussmann

MPN

FRS-R-30
