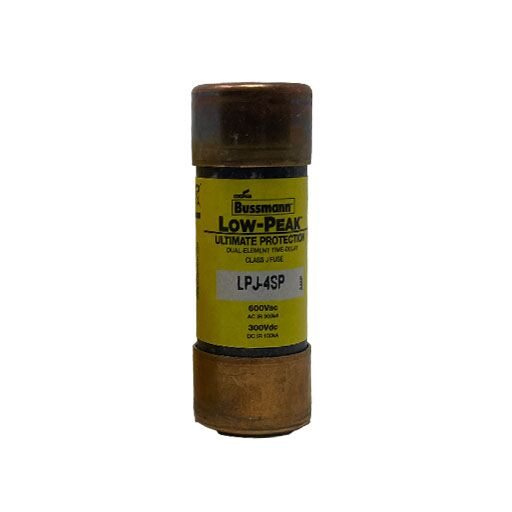

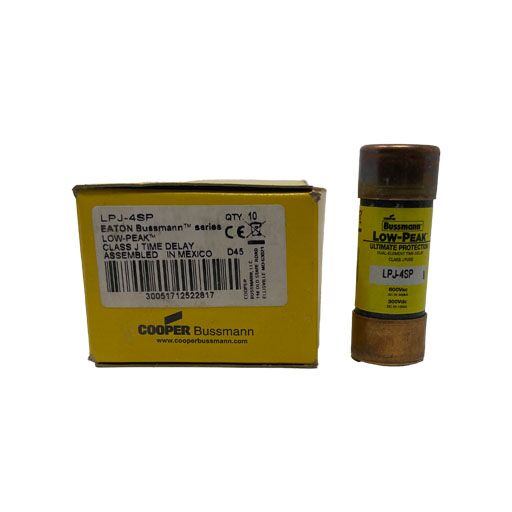

LPJ-4SP – Bussmann – Fuse Class ‘J’ 4 Amp 600 Volt

Description

Fuse Class ‘J’ 4 Amp 600 Volt

Bussmann® series Ultimate protection LPJ Class J dual element, current-limiting, time-delay fuses available with optional open fuse indication. Time delay – 10 seconds (minimum) at 500% of rated current.

Specifications:

Ratings

• Volts

• 600 Vac

• 300 Vdc*

• Amps 1-60 A

• IR 300 kA Vac RMS Sym.

• 100 kA Vdc

* Indicating versions not Vdc rated.

Agency information

• UL® Listed, Guide JDDZ, File E4273

• CSA® Certified, Class 1422-02, File 53787, Class J per CSA 22.2 No. 248.

• CE

• RoHS compliant

Manufacturer Specifications Sheet
