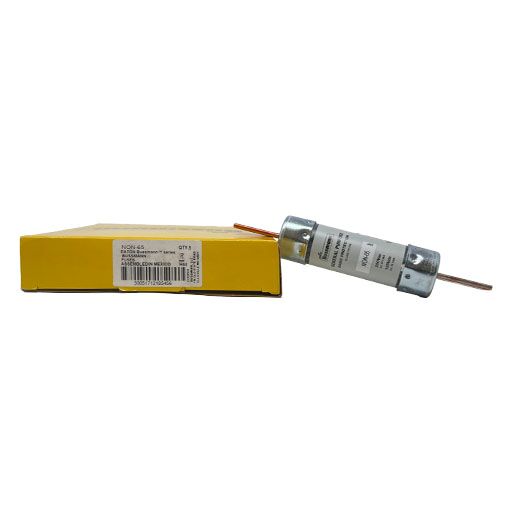

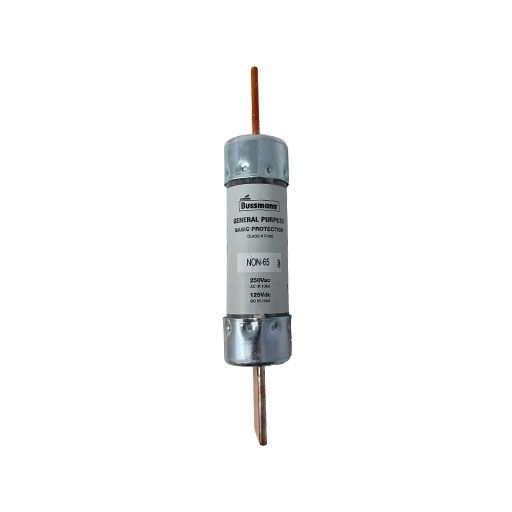

NON-65 – Bussmann – Fuse Class ‘K5’ 65 Amp 250 Volt

Description

Fuse Class ‘K5’ 65 Amp 250 Volt

Basic protection 250V NON Class K5 and H general purpose, non-current-limiting, one-time fuses.

Specifications:

Ratings:

• Volts

• 250 Vac

• 125 Vdc (1/8-100 A)

• Amps 1/8-600 A

• IR – 50 kA Vac RMS Sym. (1/8-60 A)

• 10 kA Vac RMS Sym. (65-600 A)

• 50 kA Vdc (1/8-60 A)

• 10 kA Vdc (65-100 A)

Agency information:

• UL Listed, Class K5 (1/8-60 A), Std. 248-9, Class H (65-600 A), Std. 248-6 (125 Vdc 1/8-100 A), UL Guide JDDZ, File E4274

• CSA Certified, Class 1421-01, File 53787 (1/8-12 A, 65-600 A)

Manufacturer Specifications Sheet
