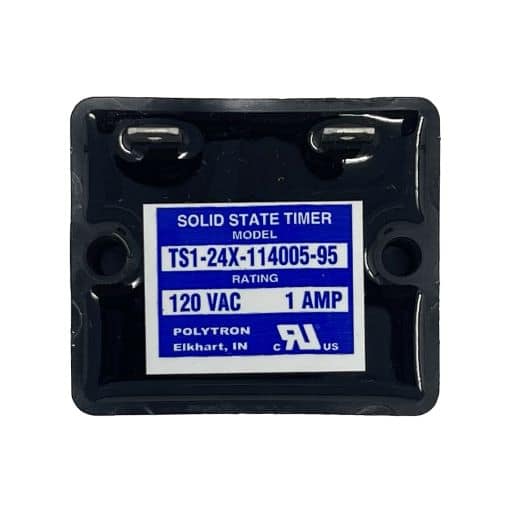

TS1-24X-114005-95 – Polytron – Time Delay Relay 0.5 Sec. 115 VAC

Description

Time Delay Relay 0.5 Sec. 115 VAC

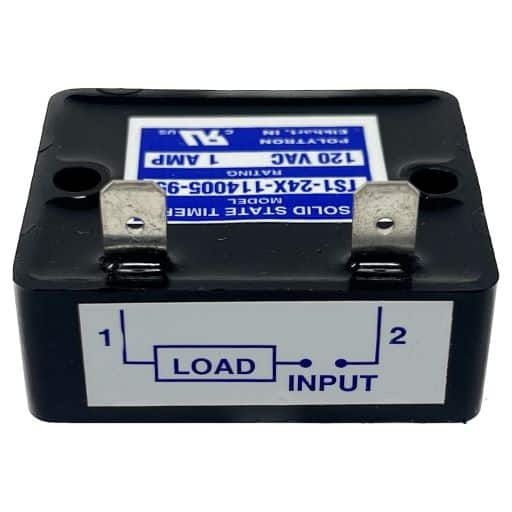

Terminations:

Standard 1/4″ Male

Fast On Terminals

Specifications:

Fixed Time Tolerance @ Rated Voltage – ±10%

Repeat Accuracy (Fixed Conditions) – ±2%

Reset Time – 75 mSEC

Voltage Tolerance – ±15%

Frequency – AC or DC

Load Rating; Steady State Maximum – 1A

Load Rating; Inrush Maximum – 10A

Voltage Drop – 2.5V Typical @ 1A

Power Consumption (During Timing) – 3 Watt Max.

Leakage Current – 5mA Max.

Operating Temperature –  -20°C to 60°C

Storage Temperature –  -30°C to 85°C

Construction – 100% Encapsulated Against Humidity, Shock & Vibration

Weight – 6 Ounces

Life In Number Of Operations – 100,000,000

Approvals: UL Recognized in USA & Canada
